BD Sensor VB — Eddy Bed Distance Sensor

Description

BD Sensor VB — Eddy Bed Distance Sensor

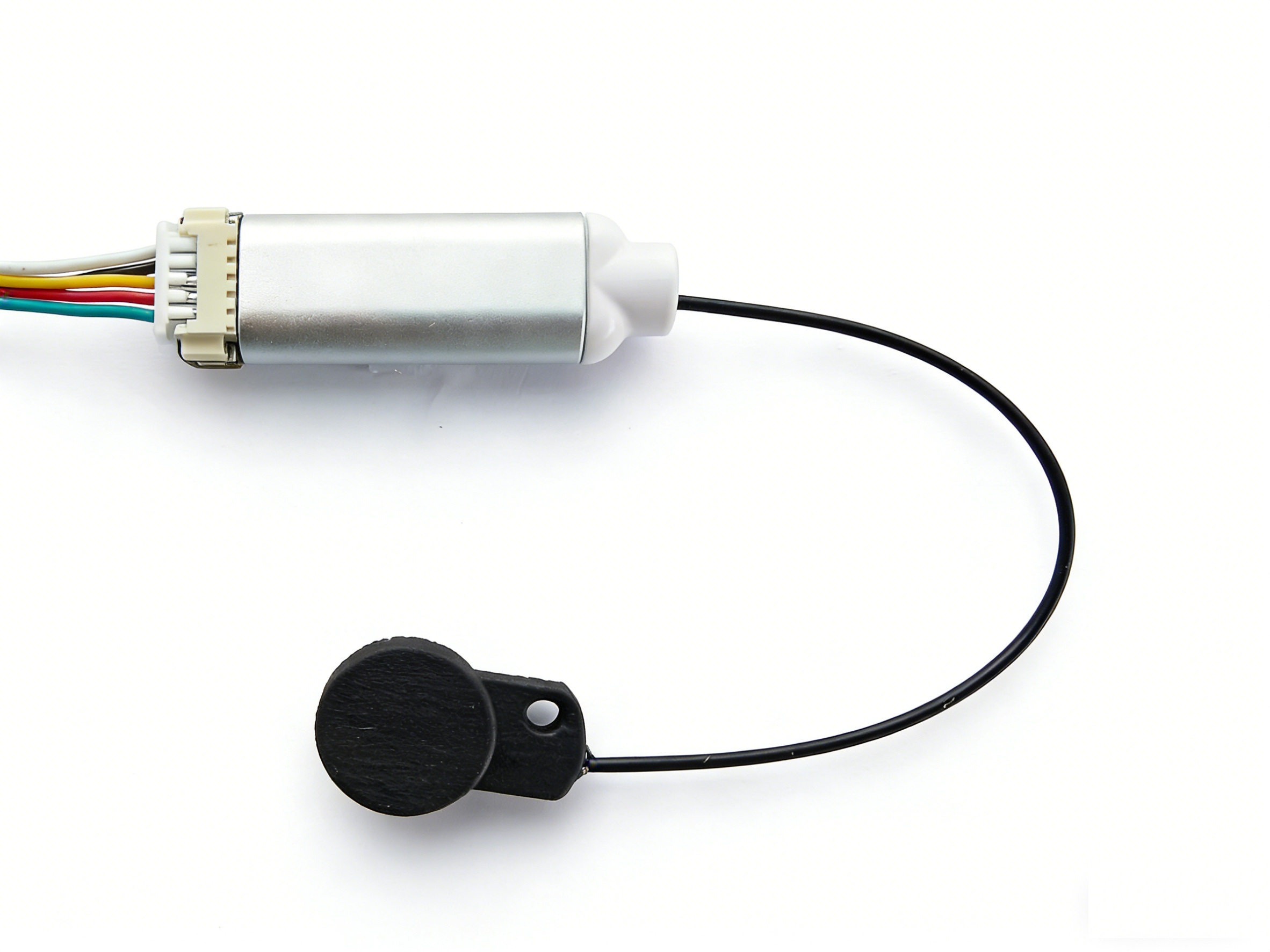

The BD Sensor VB is a compact, high-precision eddy-current sensor that measures the distance between the nozzle and the print bed in real time. Designed as a drop-in upgrade for most 3D printers, it enables automatic bed levelling, live Z-offset adjustment, and real-time distance display on your printer’s screen.

Key Features

• Fast bed scanning — quick mesh levelling across the entire build surface
• Contact probe accuracy — ±0.005 mm repeatability
• Real-time levelling — continuous Z compensation during printing
• Distance display — live nozzle-to-bed distance on your screen

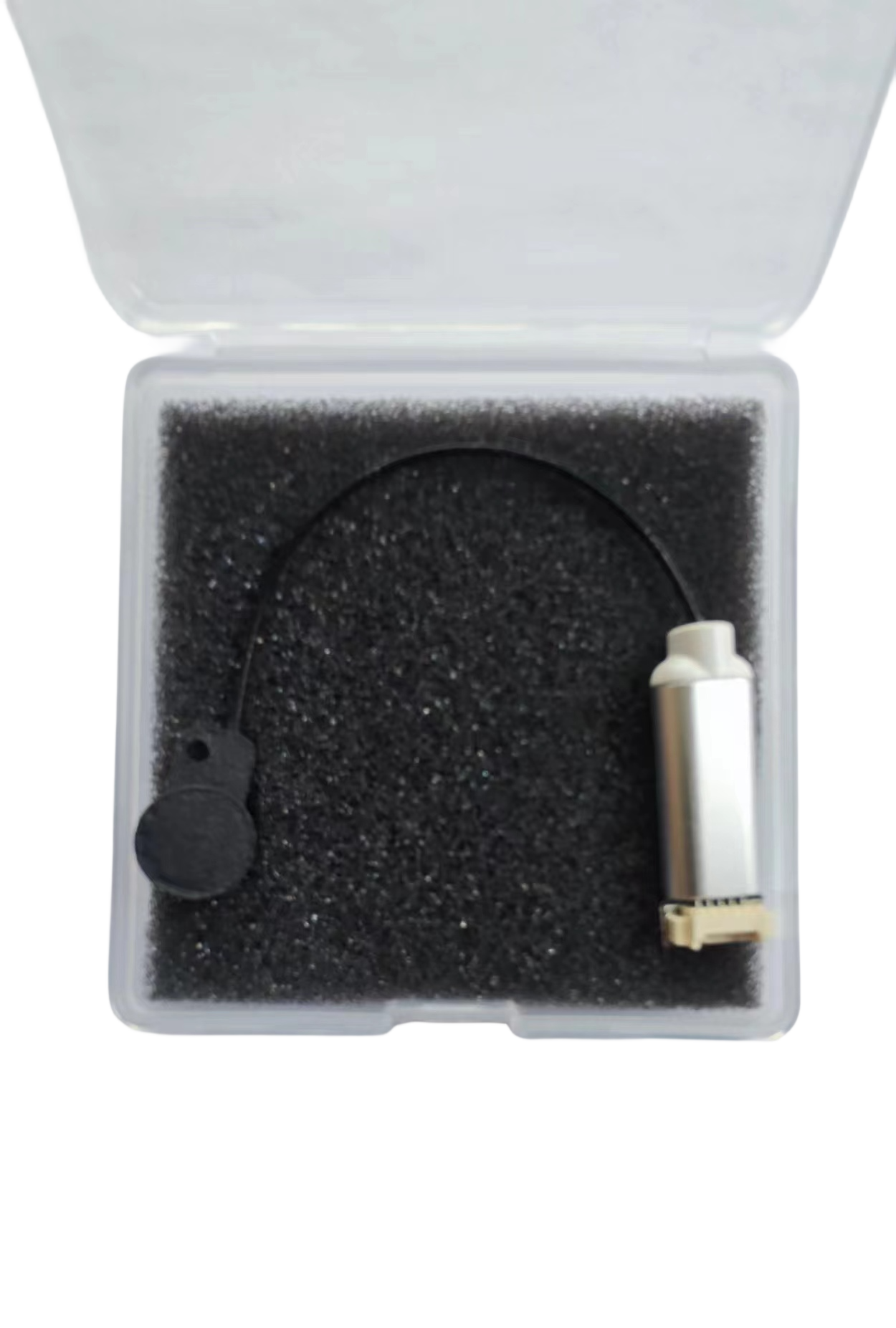

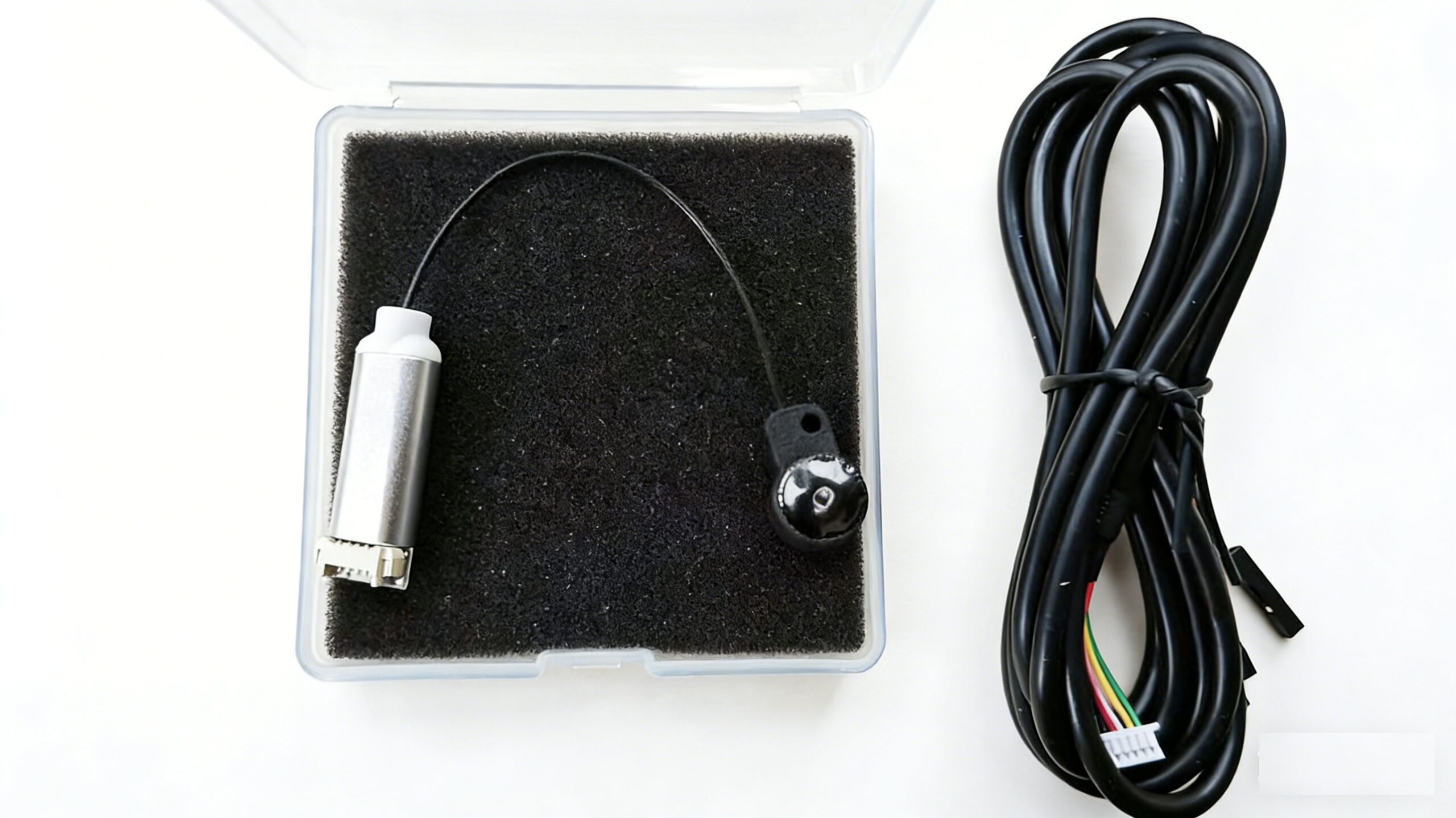

Package Contents

• 1 × BD Sensor VB (latest version)
• 1 × 1.3 m connection cable

Compatibility

Works with Klipper, Marlin and other popular firmwares. Open-source project with full documentation available on GitHub and the BD Sensor wiki.

Manufacturer

The BD Sensor is designed and manufactured by PandaPi 3D / DiscoverySky3D (Mark Niu). Product images courtesy of PandaPi 3D.

Specifications

• Sensor type: Eddy current
• Accuracy: ±0.005 mm
• Cable length: 1.3 m
• Weight: ~20 g
